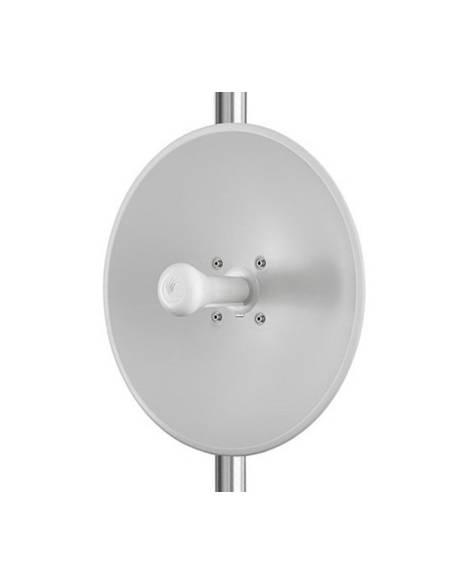

Módulo subcriptor de alta ganancia PMP 450b (sólo radio)

66000036

Hasta 300 Mbps en un canal de 40 MHz. El rango de frecuencia es 4.9 - 5.925 GHz

La plataforma Cambium Networks 450 aumenta el rendimiento con la incorporación del suscriptor 450b y el módulo de retorno.

CARACTERÍSTICAS CLAVE

  • La interfaz Gigabit Ethernet proporciona las velocidades de transferencia máximas al dispositivo
  • Disponible en versiones de ganancia media (17 dBi), alta ganancia (24 dBi) y conectorizada
  • El conector de audio de 3,5 mm permite la conexión directa de auriculares para la alineación sin necesidad de adaptadores
  • El nuevo sistema en un chip (SoC) mejora la potencia de procesamiento de paquetes más de 4 veces la del 450 SM
  • Los modelos "sin cifrado" solo se requieren para países con requisitos de licencia de control de exportación
PRODUCT
Model/Part# See table below for full set of Model and Part Numbers
SPECTRUM
Channel Spacing Configurable on 5 MHz increments
Frequency Range 5150 - 5970 MHz (exact frequencies as allowed by local regulations)
Channel Width 5 I 10 I 20 I 40 MHz
INTERFACE
MAC (Media Access Control) Layer Cambium proprietary and optionally standard 802.lln
Physical Layer 2x2 MIMO/OFDM
Ethernet Interfaced 100/lOOOBaseT, rate auto negotiated, 802.3at compliant
Powering Methods Supported 56 V PoE (included), standard 802.3at PoE Supply, or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Protocols Used IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH
Network Management IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™
VLAN 802.lQ with 802.lp priority
PERFORMANCE
Subscribers per Sector Up to 120; Lite version limited to 10
ARQ Yes
Nominal Receive Sensitivity (w/FEC) @20MHz Channel MCSO = -93 dBm to MCS15 = -69 dBm (per branch)
Nominal Receive Sensitivity (w/FEC) @40MHz Channel MCSO = -90 dBm to MCS15 = -66 dBm (per branch)
Modulation Levels (Adaptive) MCSO (BPSK) to MCS15 (640AM 5/6)
GPS Synchronization Yes, via internal GPS or CMM4 with 56 V and 5 pin to 7 pin cross over cable adapter
Quality of Service Three-level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast,
and Station Priority
Transmit Power Range 0 to +30 dBm (combined, to regional EIRP limit) (1 dB interval)
RECOMMENDED ANTENNAS
Sector Antenna ePMP Sector Antenna (C050900D021A) available
ePMP 2000 Smart Antenna ePMP 2000 Smart Antenna (C050900D020A) available (complimentary; does not replace Sector Antenna)
PHYSICAL
Sector Antenna Connection 2 x 50 ohm, RP (reverse polarity) SMA
Beamforming Antenna Connection 2 x 50 ohm, RP (reverse polarity) SMA, DC coupled (powering antenna)
GPS Antenna Connection 1 x 50 ohm, RP (reverse polarity) SMA
Surge Suppression 1 Joule Integrated
Environmental IP55
Temperature -30°C to +55°C (-22°F to +131°F)
Power Consumption 20 W Maximum [1]
Input Voltage 44 V to 59 V
Weight 0.7 kg (1.54 lbs.) without brackets
Dimensions 125 x 210 x 37 mm (4.9 x 8.3 x 1.5 in.) without brackets
Pole Mount Included Yes
Environmental Cover Included Yes
SECURITY
Encryption 128 bit AES (CCMP mode)
CERTIFICATIONS
FCCID Z8H80FT0020
Industry Canada Cert 109W-0020
CE

EN 301 893 V2.1.1

EN 302 502 V2.1.1

Notes:
[1] The maximum power consumption of the Access Point is the same regardless of whether the optional Smart
Beamforming Antenna is equipped or not. This is because the Beamforming Antenna draws its power during the uplink
cycle when the Access Point power consumption is not at its maxium.
